- 產品簡介
- 技術參數
- 其它說明
○ 防爆等級:Exml/IIT4

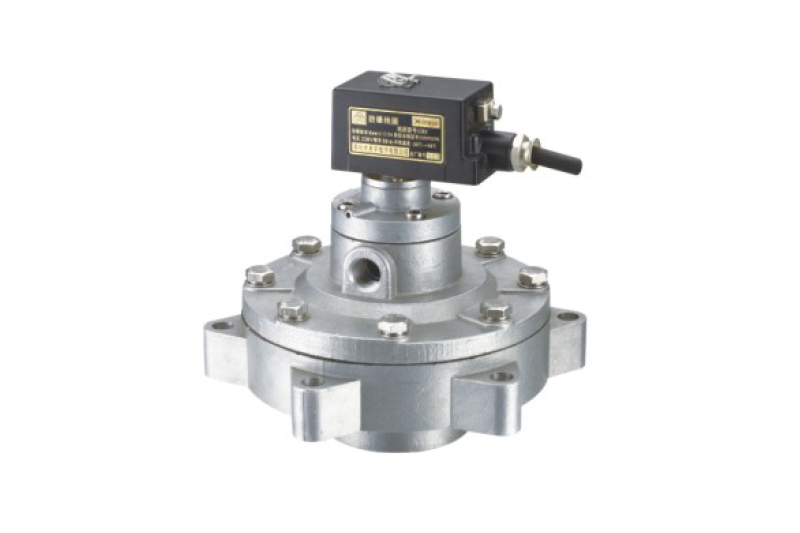

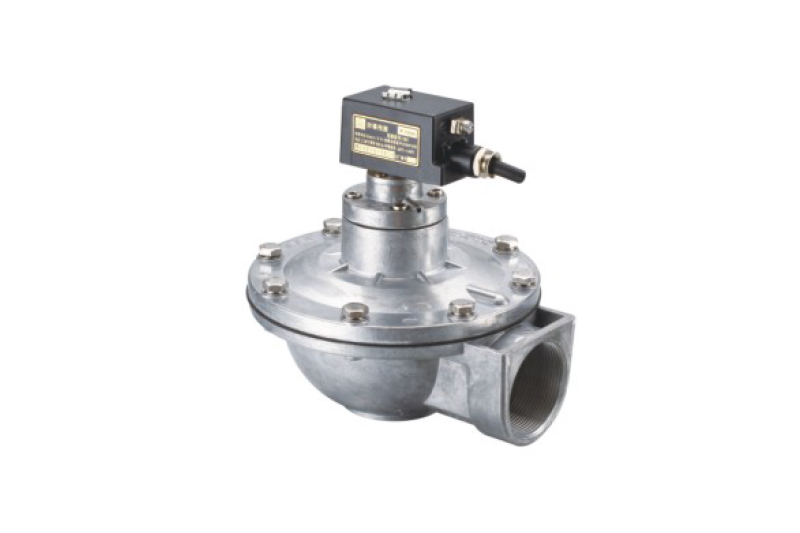

○ 各口徑的電磁閥，只要加上本公司的防爆線圈，都可以變成防爆電磁脈沖閥
○ 訂貨時請給出電壓和線纜的長度
○ 訂購防爆型脈沖閥時在原型號后加"-EX"代號
| 型號 | 工作壓力(MPa) | 環境溫度 | 相對濕度 | 使用介質 | 工作電壓 | 功率 | 公稱通徑 | 連接螺紋 |
| RMF-25DD-EX | 0.3-0.8 | -5~55℃ | ＜85％ | 清潔空氣 | DC12VAC110V AC220V DC24V | DC15W AC13VA | ?25mm | ?31mm |
| RMF-45DD-EX | ?40mm | ?50mm | ||||||
| RMF-Z-25J-EX | DC11W AC13VA | ?25mm | G1" | |||||
| RMF-Z-20J-EX | ?20mm | G3/4" | ||||||
| RMF-Z-20M-EX | DC15W AC13VA | ?20mm | G3/4" | |||||
| RMF-Z-15M-EX | ?15mm | G1/2" | ||||||
| RMF-Z-20A-EX | DC11W/AC13VA | ?20mm | G3/4" | |||||
| RMF-Z-20P-EX | DC15W AC13VA | ?20mm | G3/4" | |||||
| RMF-Z-25P-EX | ?25mm | G1" | ||||||
| RMF-Z-35P-EX | ?35mm | G1-1/2" | ||||||
| RMF-Z-40S-EX | DC13W/AC23VA | ?40mm | G1-1/2" | |||||
| RMF-Z-45P-EX | DC15W/AC13VA | ?45mm | G1-1/2" | |||||
| RMF-Z-50S-EX | ?50mm | G2" | ||||||
| RMF-Z-62S-EX | ?62mm | G2-1/2" | ||||||
| RMF-Z-76S-EX | ?76mm | G3" | ||||||
| RMF-Y-40S-EX | DC13W/AC23VA | ?45mm | G1-1/2" | |||||
| RMF-Y-50S-EX | DC15W AC13VA | ?50mm | ?62.5mm | |||||
| RMF-Y-62S-EX | ?62mm | ?76mm | ||||||
| RMF-Y-76S-EX | ?76mm | ?90mm |
